Mustang II 11.00″ Wilwood Dynapro Dust-Boot Pro Series Front Brake Kit 140-13377

$1,136.02 – $1,256.23

Dynapro Dust-Boot Pro Series Front Brake Kit

Wilwood’s new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11″ rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15″ wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.



Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Dust-Boot Pro Series Front Brake Kit

SPINDLE TYPE:

Drop Spindle; Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford Magnum Force Mercury

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

 View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: .00
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check “Figure 2. Wheel Clearance Diagram” in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Notes
1. Kit includes 5 lug hubs. Not applicable to 4 lug vehicles.




View Custom Caliper Colors















Clear

How did you hear about us? *

Shipper’s Declaration: *

All items ship depending on availability. If you have made a purchase or are considering a purchase please understand that if you have selected any shipping method other than “Ground” , i.e. (next day air, 2nd day air, 3rd day air) your order will not arrive on time if the item is not available to ship. To be 100% certain your item will ship in the aforementioned time frame should you choose anything but “Standard Ground” please call us at 800-525-0091 to check item availability even if the item is listed as “In Stock”. If you choose any method but “Standard Ground” and haven’t contacted us to confirm availability understand your order will ship out per the method you chose at checkout when the item becomes available. If you have any further questions please call us. Thank you for your patience during this time.

SKU: WWF140--13377 Categories: , Tag:

Description

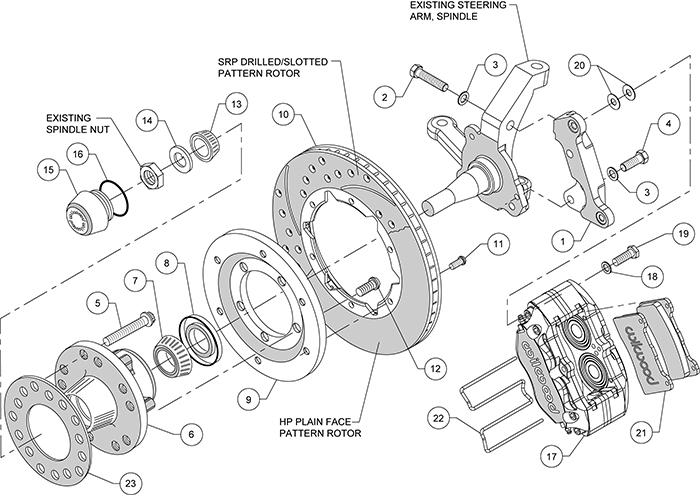

Dynapro Dust-Boot Pro Series Front Brake Kit Assembly Schematic

Dynapro Dust-Boot Pro Series Front Brake Kit Assembly Schematic



Kit Summary
OE Hub Offset: .00
(Increase / Decrease Track Width)
Spindle Type: Drop Spindle Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 – Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req’d*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545020250
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only
Kit Components & Specifications
Calipers
Left Hand – Part No: 120-11482-RD
Right Hand – Part No: 120-11482-RD
Type: Dynapro Dust-Boot
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Aluminum
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand – Part No: 160-7100-BK
Right Hand – Part No: 160-7099-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11.00
Width (in): 0.81
Vane Count: 30 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat – Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:
Hubs
Hub – Part No: 270-11252
Type: Hub – Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter – BC 1: 1/2-20
Stud Diameter – BC 2: 1/2-20
Stud Diameter – BC 3:



Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: 210-7210
Replacement Piston 1: 200-11484
Replacement Piston 2: 200-11484
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate – Left Hand: 300-5875
Wear Plate – Right Hand: 300-5875
Pad Retainer: 300-9636
Bleed Screw Kit: 220-0627

<td “=””>1975 Ford Mustang II

*Brake Lines Needed
220-8307
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional information

Weight 45 lbs
Dimensions 15 × 15 × 17 in
Choose Configuration:

Red 140-13377-R, Red Drilled and Slotted 140-13377-DR, Black 140-13377, Black Drilled and Slotted 140-13377-D
Make Model Year
Ford Calienta 1960 - 1977
Ford Cougar 1964 - 1973
Ford Fairlane 1962 - 1970
Ford Falcon 1960 - 1971
Ford Maverick 1970 - 1977
Ford Mercury Comet 1960 - 1977
Ford Mercury Cyclone 1966 - 1971
Ford Mercury Montego 1966 - 1971
Ford Mustang 1964 - 1973
Ford Rambler 1966 - 1969
Ford Ranchero 1960 - 1971
Ford Torino 1966 - 1971
Ford Wagon 1960 - 1965
