11.25 2.36 Offset Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit 140-14135-D


Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit

Wilwood’s new Billet Dynapro Lug-Drive Dynamic Stainless Super Alloy Rotor Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat, making assembly and installation literally a snap. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Kits are available in two rotor diameters: A traditional 11.44” diameter and a smaller 11.25” diameter for clearance with bead lock rims. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. Kits are available in Single and Dual caliper configurations.

8-Piston Rear Kit
11.25-in Rotor Diameter
0.35-in Rotor Width

Flange: Big Ford
Offset: 2.36
Dual Caliper
15-in Min Wheel Dia*
Lug Mount Type
Fitment: Ford/Mercury
Rear End / Axle Housing Flange
Confirm The Configuration!

Big Ford Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
caution AXLE OFFSET: 2.36
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

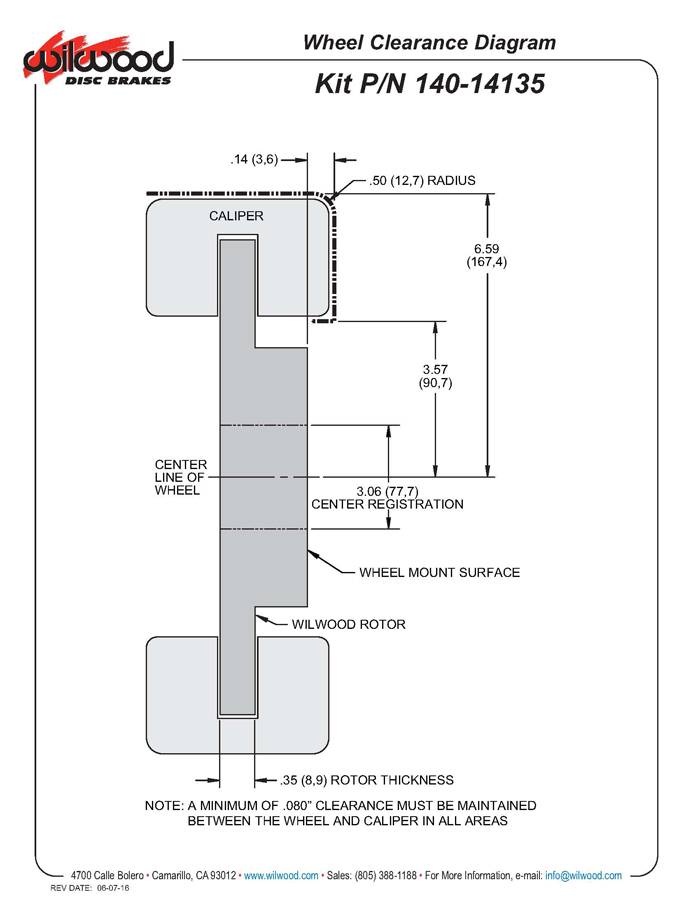

Wheel Clearance Assembly Instructions
Wheel Clearance Diagram Zoom Image


View Custom Caliper Colors


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
REAR END:   Big Ford – Rear Kit
For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1



How did you hear about us? *

Shipper’s Declaration: *

All items ship depending on availability. If you have made a purchase or are considering a purchase please understand that if you have selected any shipping method other than “Ground” , i.e. (next day air, 2nd day air, 3rd day air) your order will not arrive on time if the item is not available to ship. To be 100% certain your item will ship in the aforementioned time frame should you choose anything but “Standard Ground” please call us at 800-525-0091 to check item availability even if the item is listed as “In Stock”. If you choose any method but “Standard Ground” and haven’t contacted us to confirm availability understand your order will ship out per the method you chose at checkout when the item becomes available. If you have any further questions please call us. Thank you for your patience during this time.

SKU: WWR140-14135-D Categories: , , Tags: ,


Kit Summary
Rear End Axle: Big Ford
Axle Offset: 2.36
Mount Type: Lug
Caliper Type: 8 – Type III Ano
Rotor Diameter: 11.25
Min Wheel Diameter Req’d*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545094237
WARNING: Cancer and Reproductive Harm
Applicable to Brake Pads Only

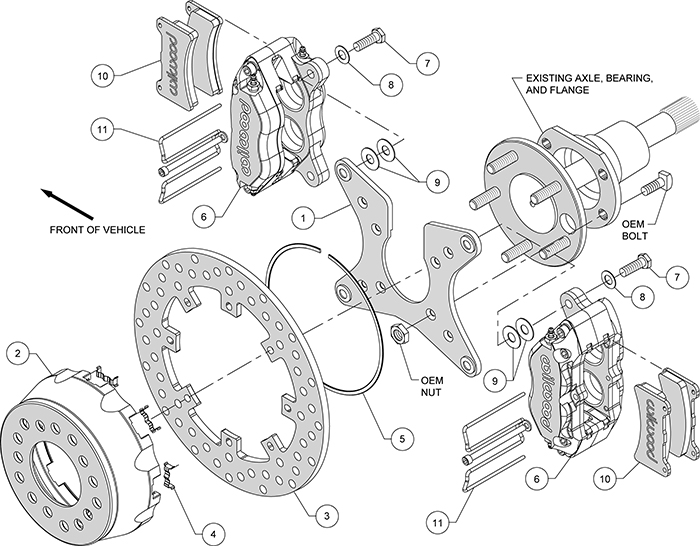

Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit Assembly Schematic

Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit Assembly Schematic
Kit Components & Specifications
Left Hand – Part No: 120-14182
Right Hand – Part No: 120-14182
Type: Dynapro Lug Mount
Finish Color: Type III Ano
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-30
Dynapro Lug Mount Caliper - Type III AnoDynapro Lug Mount Caliper – Type III Ano Zoom Image
Left Hand – Part No: 160-14155
Right Hand – Part No: 160-14155
Type: Drilled Super Alloy
Style: Drilled
Surface Finish: Plain
Material: Super Alloy
Outside Diameter (in): 11.25
Width (in): 0.35
Vane Count: Solid
Design Type: Alloy Solid
Bedded: No
Dynamically Balanced: No
Drilled Super Alloy - Super Alloy - PlainDrilled Super Alloy – Super Alloy – Plain Zoom Image
Rotor Hats
Hat – Part No: 170-12430
Type: Dynamic Drag Hat – Lug Drive
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 1.410
Bolt Circle 1: 5 X 4.50
Bolt Circle 2: 5 X 4.75
Bolt Circle 3: 5 X 5.00
Stud Diameter – BC 1: 0.520
Stud Diameter – BC 2: 0.520
Stud Diameter – BC 3: 0.520
Dynamic Drag Hat - Lug Drive - Aluminum - Type III AnodizeDynamic Drag Hat – Lug Drive – Aluminum – Type III Anodize Zoom Image
Hub – Part No:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:
Parts & Accessories
Caliper Parts
O-ring Kit: 130-2658
Replacement Dustboot: N-A
Replacement Piston 1: 200-7518
Replacement Piston 2: 200-7518
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-10117
Wear Plate – Left Hand: 300-5875
Wear Plate – Right Hand: 300-5875
Pad Retainer: 300-9634
Bleed Screw Kit: 220-0627
Brake Lines
Bolt Kit: 300-12561
Bolt Kit:

Additional information

Weight 65 lbs
Dimensions 16 × 16 × 18 in
