12.19″ 2.50 Offset Forged Dynalite Rear Electronic Parking Brake Kit 140-16150

$2,148.82 – $2,269.03

Forged Dynalite Rear Electronic Parking Brake Kit

This group of FDL Pro-Series Rear Electronic Parking Brake Kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite four piston calipers, 12.19” one-piece rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

4-Piston Rear Kit
12.19-in Rotor Diameter
0.81-in Rotor Width

Flange: Small Ford

Offset: 2.50
Rear Mounted Calipers
15-in Min Wheel Dia*
Lug Mount Type

Fitment: Ford/Mercury
Rear End / Axle Housing Flange
Confirm The Configuration!

Small Ford Flange		 Confirm Offset Measurement!

Axle Flange Cross-Section
caution AXLE OFFSET: 2.50
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188



Wheel Clearance Assembly Instructions

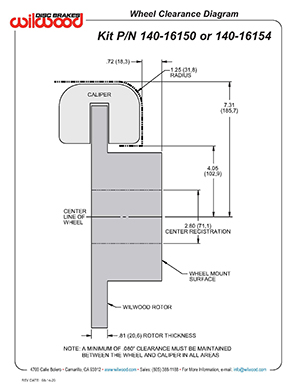

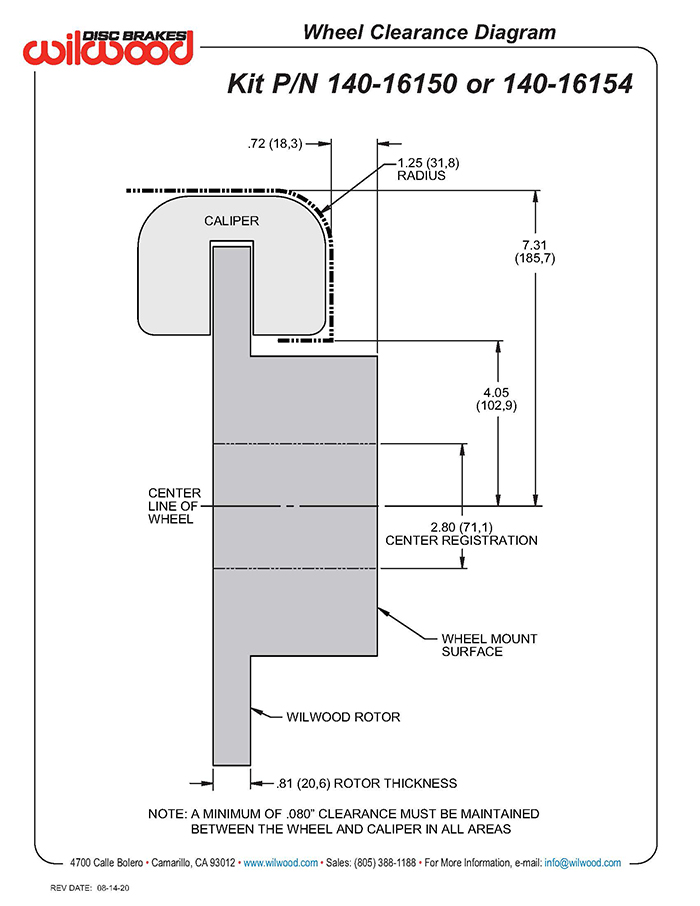

Wheel Clearance Diagram Zoom Image
Notes
1. Kit may fit some 15″ wheels. Check wheel clearance diagram in kit installation instructions before purchase.




View Custom Caliper Colors

BRAKE KIT:   Forged Dynalite Rear Electronic Parking Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
REAR END:   Small Ford – Rear Kit
AXLE OFFSET:   2.50
For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1



Clear

How did you hear about us? *

Shipper’s Declaration: *

All items ship depending on availability. If you have made a purchase or are considering a purchase please understand that if you have selected any shipping method other than “Ground” , i.e. (next day air, 2nd day air, 3rd day air) your order will not arrive on time if the item is not available to ship. To be 100% certain your item will ship in the aforementioned time frame should you choose anything but “Standard Ground” please call us at 800-525-0091 to check item availability even if the item is listed as “In Stock”. If you choose any method but “Standard Ground” and haven’t contacted us to confirm availability understand your order will ship out per the method you chose at checkout when the item becomes available. If you have any further questions please call us. Thank you for your patience during this time.

SKU: WWR140--16150 Categories: , Tag:

Description

Kit Summary
Rear End Axle: Small Ford
Axle Offset: 2.50
Mount Type: Lug
Caliper Type: 4 – Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req’d*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545097313
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

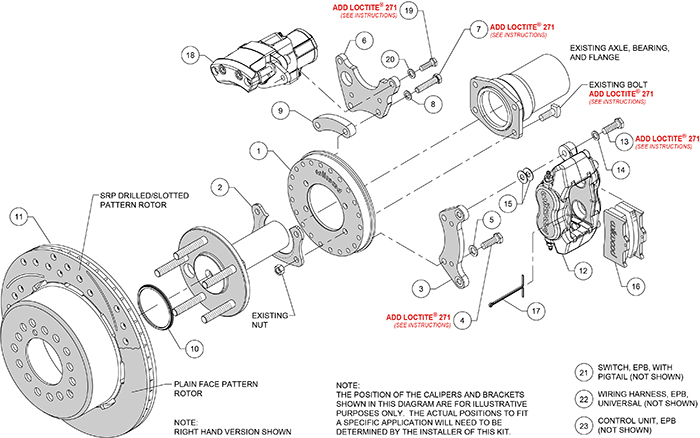

Forged Dynalite Rear Electronic Parking Brake Kit Assembly Schematic

Forged Dynalite Rear Electronic Parking Brake Kit Assembly Schematic
Kit Components & Specifications
Calipers
Left Hand – Part No: 120-13839-RD
Right Hand – Part No: 120-13839-RD
Type: Forged Dynalite Internal
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite Internal Caliper - Red Powder CoatForged Dynalite Internal Caliper – Red Powder Coat Zoom Image
Rotors
Left Hand – Part No: 160-9986
Right Hand – Part No: 160-9986
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No

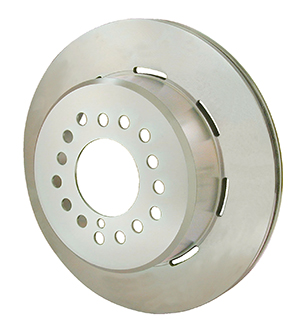

Ultralite HP 32 & Hat - Iron - PlainUltralite HP 32 & Hat – Iron – Plain Zoom Image
Rotor Hats
Hat – Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:
Hubs
Hub – Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:
Parts & Accessories
Caliper Parts
O-ring Kit: 130-2658
Replacement Dustboot: N-A
Replacement Piston 1: 200-7518
Replacement Piston 2: 200-7518
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate – Left Hand: 300-5875
Wear Plate – Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional information

Weight 65 lbs
Dimensions 16 × 16 × 18 in
Choose Configuration:

Black Undrilled 140-16150, Black Drilled and Slotted 140-16150-D, Red Drilled and Slotted 140-16150-DR, Red Undrilled 140-16150-R
