Wilwood Classic Series Dynalite Front Brake Kit 140-15908

$755.58

Classic Series Dynalite Front Brake Kit

ATTENTION! This FDL-M Classic Style Kit is designed for the WWE AFX Pro spindles.

AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles. FDL-M Classic Style Kits feature 11.00″, 1 Piece Irom Rotor and Hub assemblies, Forged Dynalite-M 4-piston calipers to deliver the ultimate combination for braking power. Built exclusively for 14” and larger wheels, FDL-M Classic Style enhance tire and suspension upgrades on street and track machines. Verify fitment on the Wilwood website.

Compatible Vehicles for this Brake Kit
BRAKE KIT:   Classic Series Dynalite Front Brake Kit

SPINDLE TYPE:

Drop Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Buick Chevrolet GMC Oldsmobile Pontiac Wilwood

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

 View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.47
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check “Figure 2. Wheel Clearance Diagram” in the installation Instructions below to verify you have adequate wheel clearance for this kit.



Wheel Clearance Diagram






View Custom Caliper Colors



Choose your caliper color: *

Red 140-15908-R Black 140-15908

Wilwood AFX Pro Spindle Option:

Wilwood’s AFX ProSpindle Kits contain a pair of high strength steel spindles for 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles that use the original bolt on steering arms. Specifically designed for use with Wilwood’s disc brake kits, with a 2.00” drop for a more aggressive stance without affecting steering geometry. With the added benefits of providing a lower center of gravity, raised front roll center and a decreased camber change also improve handling with less body roll. Installs using the OE ball joints using original or aftermarket control arms. Kit includes four steering arm bolts, two for each spindle.

NOTE: These spindles will fit 1964-66 Buick, Chevy, Oldsmobile, and Pontiac A-body cars, but some models used steering arms with 7/16” mounting bolts. The bolt holes in the steering arm must be enlarged to .50″ by drilling. It is recommended these modifications be performed by a qualified machinist.

None AFX ProSpindles +$296.94

Wilwood Flexline Kit – 220-7699 (Needed)

Applications
Chevy 55-57, Universal 16″ Kit
Kit Notes
FLEXLINE KIT,16in.,UNIVERSAL,3/8-24 TO 90 DEG

None Flexline Kit - 220-7699 +$73.95

How did you hear about us? *

Shipper’s Declaration: *

All items ship depending on availability. If you have made a purchase or are considering a purchase please understand that if you have selected any shipping method other than “Ground” , i.e. (next day air, 2nd day air, 3rd day air) your order will not arrive on time if the item is not available to ship. To be 100% certain your item will ship in the aforementioned time frame should you choose anything but “Standard Ground” please call us at 800-525-0091 to check item availability even if the item is listed as “In Stock”. If you choose any method but “Standard Ground” and haven’t contacted us to confirm availability understand your order will ship out per the method you chose at checkout when the item becomes available. If you have any further questions please call us. Thank you for your patience during this time.

SKU: 140-15908 Categories: , , Tag:

Description

Kit Summary
OE Hub Offset: +.47
(Increase / Decrease Track Width)
Spindle Type: Drop Spindle
Mount Type: Lug
Caliper Type: 4 – Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req’d*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram



UPC Number
UPC 889545093292



WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only



Classic Series Dynalite Front Brake Kit Assembly Schematic





Kit Components & Specifications
Calipers
Left Hand – Part No: 120-13551-RD
Right Hand – Part No: 120-13551-RD
Type: Forged Dynalite-M
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite-M Caliper - Red Powder CoatForged Dynalite-M Caliper – Red Powder Coat Zoom Image
Rotors
Left Hand – Part No: 160-15132
Right Hand – Part No: 160-15132
Type: 1 PC Hub and Rotor
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.00
Width (in): 1.00
Vane Count: Vented
Design Type: ULHP
Bedded: No
Dynamically Balanced: No

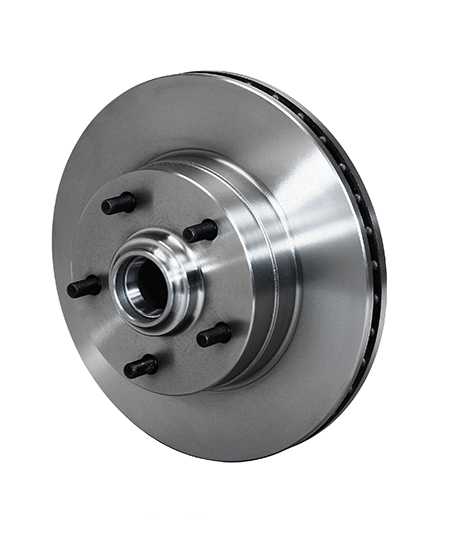

1 PC Hub and Rotor - Iron - Plain1 PC Hub and Rotor – Iron – Plain Zoom Image
Rotor Hats
Hat – Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:
Hubs
Hub – Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:
Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate – Left Hand: 300-5875
Wear Plate – Right Hand: 300-5875
Pad Retainer: 180-0056
Bleed Screw Kit: 220-0627
Front Line Kit:

Brake Lines
220-7699
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional information

Weight 43 lbs
Dimensions 16 × 16 × 18 in
Choose Configuration:

Black Undrilled 140-16151, Black Drilled and Slotted 140-16151-D, Red Drilled and Slotted 140-16151-DR, Red Undrilled 140-16151-R
Make Model Year
Buick Apollo 1973 - 1974
Buick Gran Sport 1965 - 1967
Buick GS 1970 - 1972
Buick GS 350 1968 - 1969
Buick GS 400 1968 - 1969
Buick GS 455 1970 - 1972
Buick GS 455 GSX 1970
Buick Skylark 1966 - 1972
Buick Special 1966 - 1969
Buick Sportwagon 1965 - 1972
Chevrolet Camaro 1967 - 1969
Chevrolet Chevelle 1964 - 1972
Chevrolet Chevy II 1968
Chevrolet El Camino 1964 - 1972
Chevrolet Malibu 1964 - 1967
Chevrolet Monte Carlo 1970 - 1972
Chevrolet Nova 1968 - 1974
GMC Sprint 1971 - 1972
Oldsmobile 442 1967 - 1971
Oldsmobile Cutlass 1967 - 1972
Oldsmobile Cutlass Supreme 1967 - 1972
Oldsmobile F85 1967 - 1972
Oldsmobile Omega 1973 - 1974
Oldsmobile Vista Cruiser 1967 - 1972
Pontiac Acadian 1967 - 1971
Pontiac Beaumont 1967 - 1969
Pontiac Firebird 1967 - 1969
Pontiac Grand Prix 1969 - 1972
Pontiac GTO 1967 - 1974
Pontiac LeMans 1967 - 1972
Pontiac Tempest 1967 - 1970
Pontiac Ventura II 1971 - 1974
