14.00″ 2.50″ Offset AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit 140-13164-CSICR

$7,770.00



AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit

AERO4 WCCB Carbon-Ceramic Rotor Rear Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with internal shoe backing plates for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. Black or Red powder coat calipers are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

4-Piston Rear Kit
14.00-in Rotor Diameter
1.10-in Rotor Width

Flange: Big Ford New Style
Offset: 2.50
Rear Mounted Calipers
18-in Min Wheel Dia*
Radial Mount Type
Fitment: Ford/Mercury
Rear End / Axle Housing Flange
Confirm The Configuration!

Big Ford New Style Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
caution AXLE OFFSET: 2.50
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188



Wheel Clearance Assembly Instructions

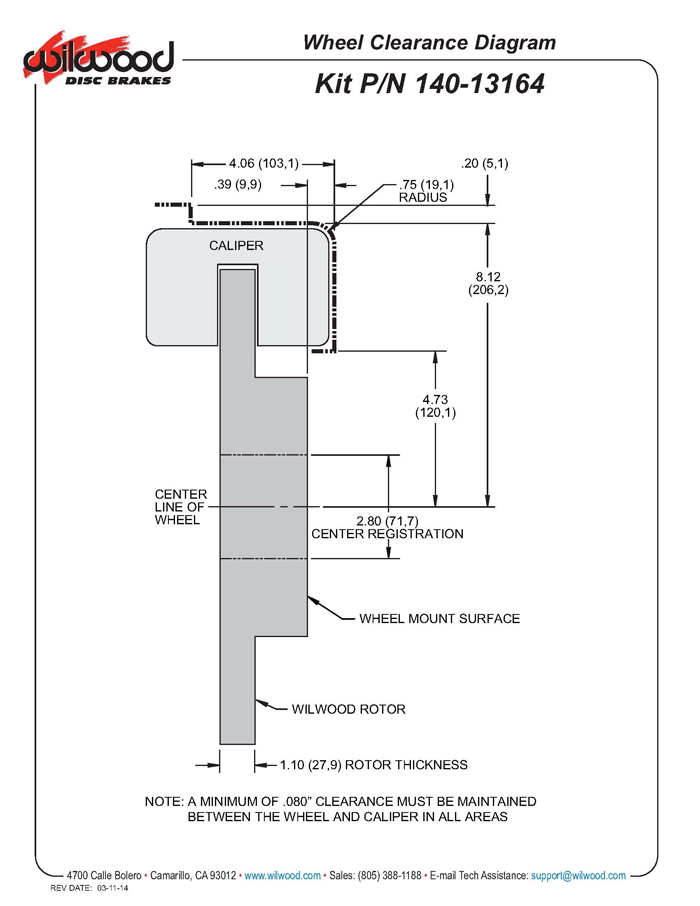

Wheel Clearance Diagram Zoom Image






View Custom Caliper Colors



Compatible Vehicles for this Brake Kit
BRAKE KIT:AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
REAR END:   Big Ford New Style – Rear Kit
AXLE OFFSET:   2.50
For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1



Clear

How did you hear about us? *

Shipper’s Declaration: *

All items ship depending on availability. If you have made a purchase or are considering a purchase please understand that if you have selected any shipping method other than “Ground” , i.e. (next day air, 2nd day air, 3rd day air) your order will not arrive on time if the item is not available to ship. To be 100% certain your item will ship in the aforementioned time frame should you choose anything but “Standard Ground” please call us at 800-525-0091 to check item availability even if the item is listed as “In Stock”. If you choose any method but “Standard Ground” and haven’t contacted us to confirm availability understand your order will ship out per the method you chose at checkout when the item becomes available. If you have any further questions please call us. Thank you for your patience during this time.

SKU: WWR140--13164-CSICR Categories: , , Tags: ,

Description

Kit Summary
Rear End Axle: Big Ford New Style
Axle Offset: 2.50
Mount Type: Radial
Caliper Type: 4 – Red Powder Coat
Rotor Diameter: 14.00
Min Wheel Diameter Req’d*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545019094
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

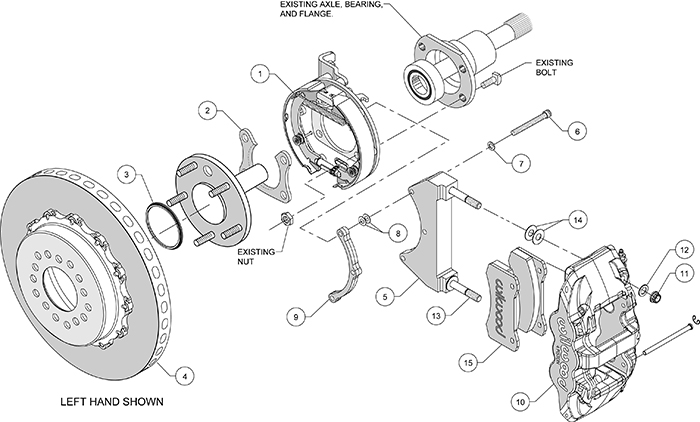

AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit Assembly Schematic

AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit Assembly Schematic
Kit Components & Specifications
Calipers
Left Hand – Part No: 120-13338-RD
Right Hand – Part No: 120-13338-RD
Type: AERO4
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: PCM
AERO4 Caliper - Red Powder CoatAERO4 Caliper – Red Powder Coat Zoom Image
Rotors
Left Hand – Part No: 160-12441
Right Hand – Part No: 160-12441
Type: WCCD Carbon-Ceramic
Style: Plain Face
Surface Finish: Plain
Material: C/SiC
Outside Diameter (in): 14.00
Width (in): 1.10
Vane Count: 24 V
Design Type: C/SiC
Bedded: No
Dynamically Balanced: No
WCCD Carbon-Ceramic - C/SiC - PlainWCCD Carbon-Ceramic – C/SiC – Plain Zoom Image
Rotor Hats
Hat – Part No: 170-13354
Type: Parking Brake Hat – Dynamic Bobbin Mount
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.540
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3: 5 x 5.00
Stud Diameter – BC 1: 0.520
Stud Diameter – BC 2: 0.520
Stud Diameter – BC 3: 0.520

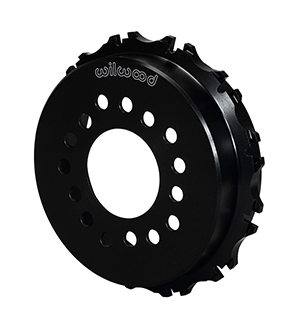

Parking Brake Hat - Dynamic Bobbin Mount - Aluminum - Black E-CoatParking Brake Hat – Dynamic Bobbin Mount – Aluminum – Black E-Coat Zoom Image
